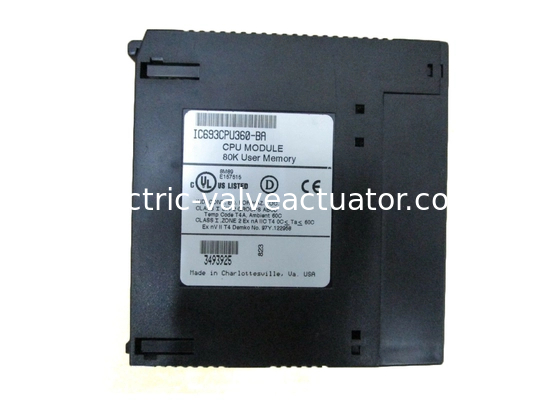

GE FANUC IC693CPU360 , single slot CPU module , Series 90/30 PLC system

Name: GE FANUC IC693CPU360 , single slot CPU module , Series 90/30 PLC system
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: IC693CPU360
Price: 210.00 USD
Availability: InStock

Nome da marca:	GE
Número do modelo:	IC693CPU360
MOQ:	1
preço:	Negotiations

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

EUA

Tipo de produto:

CPU

Microprocessador:

80386EX

Pontos do I/O:

4096

Avaliação entrada tensão:

5V DC

Consumo atual:

670 miliampères

Temperatura operacional:

0-60 graus Celsius

Detalhes da embalagem:

Nova caixa original

Destacar:

GE FANUC IC693CPU360 CPU module

Series 90/30 PLC system

single slot PLC controller

Descrição do produto

GE FANUC IC693CPU360, Single Slot CPU Module, Series 90/30 PLC System

Product Description

The GE Fanuc IC693CPU360 is a Central Processing Unit (CPU) 360 Module. It has 240 Kbytes of Configurable User Memory. This is a single slot CPU module with 4096 discrete I/O points across 8 racks.

The typical scan rate of the CPU 360 module is 0.22 mS per 1K of logic memory. Although the module has no built-in serial ports, it can use the connector on a PLC power supply. This module has both RAM and Flash memory and like other IC693 modules, it is compatible with Firmware v.10.60. This unit is compatible with the Series 90-30 range from GE Fanuc. When using this CPU with entry-level applications with low I/O counts, the CPU is embedded into the backplane. This makes all slots available for input or output usage. Ethernet, various bus modules, and control devices are some of the compatible devices that can operate with this CPU module.

Mid-range CPU models are modular and they are available in various memory sizes. The range also includes models with different performance capabilities and increased functionality such as Programmable Coprocessor module support, overrides and a battery-backed clock. As for the high-performance CPUs, they are based on the latest 386EX processor.

This enables fast computation and high throughput. These modules can handle up to 4,096 I/O points and they start at 32K of memory and can be programmed in a number of standard languages. The IC693CPU360 is a high-performance CPU.

Technical Specifications

Processor Speed	25 MHz
I/O Points	2048
Register Memory	240KBytes
Floating Point Math	Yes
32 BIT system
Processor	80386EX

Technical Information

CPU360 Catalog Number IC693CPU360

CPU Type	Single slot CPU module
Total Baseplates per System	8 (CPU baseplate + 7 expansion and/or remote)
Load Required from Power Supply	670 milliamps from +5 VDC supply
Processor Speed	25 MegaHertz
Processor Type	80386EX
Operating Temperature	0 to 60 degrees C (32 to 140 degrees F) ambient
Typical Scan Rate	0.22 milliseconds per 1K of logic (boolean contacts)
User Program Memory (maximum)	Starting with firmware Release 9.0, 240K Bytes. Note: Actual size of available user program memory depends on the amounts configured for the %R, %AI, and %AQ configurable word memory types (see below). For firmware prior to Release 9.0, fixed size is 80K bytes.
Discrete Input Points - %I	2,048
Discrete Output Points - %Q	2,048
Discrete Global Memory - %G	1,280 bits
Internal Coils - %M	4,096 bits
Output (Temporary) Coils - %T	256 bits
System Status References - %S	128 bits (%S, %SA, %SB, %SC - 32 bits each)
Register Memory - %R	Starting with firmware Release 9.0, configurable in 128 word increments from 128 to 16,384 words with Logicmaster and from 128 to 32,640 words with Control version 2.2. For firmware prior to Release 9.0, fixed size is 9,999 words.
Analog Inputs - %AI	Starting with firmware Release 9.0, configurable in 128 word increments from 128 to 16,384 words with Logicmaster and from 128 to 32,640 words with Control version 2.2. For firmware prior to Release 9.0, fixed size is 9,999 words.
Analog Outputs - %AQ	Starting with firmware Release 9.0, configurable in 128 word increments from 128 to 16,384 words with Logicmaster and from 128 to 32,640 words with Control version 2.2. For firmware prior to Release 9.0, fixed size is 9,999 words.
System Registers (for reference table viewing only; cannot be referenced in logic program)	28 words (%SR)
Timers/Counters	>2,000
Shift Registers	Yes
Built-in Serial Ports	1 (uses connector on PLC power supply). Supports SNP slave and SNP-X slave protocols. Requires CMM module for SNP/SNP-X master, CCM, or RTU slave protocol support; PCM module for RTU master support.
Communications	LAN - Supports multidrop. Also supports Ethernet, FIP, Profibus, GBC, GCM, and GCM+ option modules.
Override	Yes
Battery Backed Clock	Yes
Interrupts	Yes
Type of Memory Storage	RAM and Flash
PCM/CCM Compatibility	Yes
Floating Point Math Support	Yes, firmware-based in firmware Release 9.0 and later.
