Fluke 116C Handheld True RMS Digital Multimeter - HVAC Professional Tester with Temperature & Microamp Measurement

Name: Fluke 116C Handheld True RMS Digital Multimeter - HVAC Professional Tester with Temperature & Microamp Measurement
Brand: OUTER ELECTRONIC TECHNOLOGY (HK) LIMITED
SKU: 116C
Price: 210.00 USD
Availability: InStock

Nome da marca:	Fluke
Número do modelo:	116C
MOQ:	1
preço:	Negotistical

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

OEM

Detalhes da embalagem:

Nova caixa original

Descrição do produto

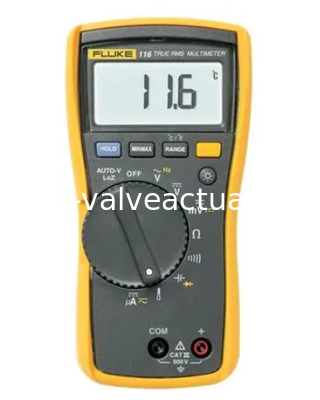

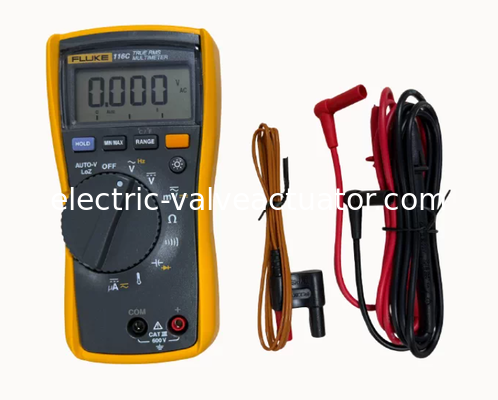

Fluke 116C Handheld True RMS Digital Multimeter

HVAC Professional Tester with Temperature & Microamp Measurement

Technical Specifications

Specification	Details
Maximum voltage between any terminal and ground	600 V
Overvoltage protection	6 kV peak, compliant with IEC 61010-1 600 V CAT III, pollution degree 2
Display	Digital: 6000 counts, updated 4 times per second Bar chart: 33 segments, updated 32 segments per second
Operating temperature	-10 °C to +50 °C
Storage temperature	-40 °C to +60 °C
Battery type	9 V alkaline battery, NEDA 1604A/IEC 6LR61
Battery life	Typically 400 hours, without backlight

Accuracy Specifications

Measurement Type	Range/Resolution	Accuracy
DC millivolt	600.0 mV / 0.1 mV	± (0.5% + 2)
DC voltage	6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V	± (0.5% + 2)
Auto Volt	600.0 V / 0.1 V	± (2.0% + 3) DC, 45 Hz to 500 Hz ± (4.0% + 3) 500 Hz to 1 kHz
AC Voltage (mV) True RMS	600.0 mV / 0.1 mV	± (1.0% + 3) DC, 45 Hz to 500 Hz ± (2.0% + 3) 500 Hz to 1 kHz
AC Voltage True RMS	6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V	± (1.0% + 3) DC, 45 Hz to 500 Hz ± (2.0% + 3) 500 Hz to 1 kHz
Continuity	600 Ω / 1 Ω	< 20 Ω with buzzer on, > 250 Ω with buzzer off; detects open or short circuits for 500 μs or longer
Ohm Measurement	600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ	± (0.9% + 1)
Ohm Measurement	40.00 MΩ / 0.01 MΩ	± (5% + 2)
Diode Testing	2.00 V / 0.001 V	± (0.9% + 2)
Capacitance Measurement	1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF	± (1.9% + 2)
Capacitance Measurement	> 1000 μF	± (5% + 20%)
Lo-Z Capacitor	1 nF to 500 μF	± (10% + 2)
Temperature (Type K Thermocouple)	-40 °C to 400 °C / 0.1 °C	± (1% + 10)
Temperature (Type K Thermocouple)	-40 °F to 752 °F / 0.2 °F	± (1% + 18)
AC μA True RMS (45 Hz to 500 Hz)	600.0 μA / 0.1 μA	± (1.5% + 3)
DC Microamp	600.0 μA / 0.1 μA	± (1.0% + 2)
Hz (Voltage or Current Input)	99.99 Hz / 0.01 Hz 999.9 Hz / 0.1 Hz 9.999 kHz / 0.001 Hz 50.00 kHz / 0.01 Hz	± (0.1% + 2)

Notes

All AC voltage ranges (except Auto-V/LoZ) are specified as 1% to 100% of the range. The starting range for Auto-V/LoZ is specified as 0.0 V.
Temperature error (accuracy) does not include thermocouple probe error.
Frequency is 5 Hz to 50 kHz for AC coupling and AC voltage. Frequency is 45 Hz to 5 kHz for DC coupling and AC current.

Mechanical and General Specifications
