| Lugar de origem: | China |
| Marca: | DYLINK |
| Número do modelo: | SW1801D |
| Quantidade de ordem mínima: | 1 grupo |
|---|---|
| Detalhes da embalagem: | Embalagem da caixa de madeira |
| Tempo de entrega: | 15 dias após ter assinado o contrato |
| Termos de pagamento: | T/T |
| Habilidade da fonte: | 1000sets |
| Especificações: | SW1801D | Conexões do computador: | 8 |
|---|---|---|---|
| Conectores do anfitrião: | fêmea de 8x DVI; tipo fêmea de 8x USB de B | Definições máximas de Digitas: | x 1920 1200@60Hz |
| TemperatureRange de funcionamento: | -40 ~ +55°C | fonte de alimentação: | DC12V/1A |
| Dimensões (W x H x D): | 438mm x 153mm x 44.5mm | ||
| Realçar: | Interruptor fêmea de DVI KVM,8 interruptor portuário de DVI KVM,Interruptor da montagem em rack KVM de DVI |
||

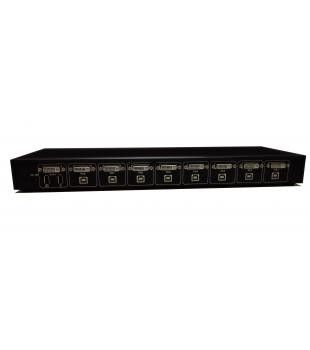

Description: The DYLINK® SW1801D 8 Port DVI KVM Switch allows quick switch between 8 computers from a single USB keyboard and mouse. The SW1801D setup is easy,simply plug the cables into their appropriate ports . There is no software to configure, no installations, and no incompatibility issues. In addition, the SW1801D allowing it to work on multiple OS platforms including:Windows, Linux, and Mac.
Features
■ Share keyboard, mouse, and DVI display between eight DVI-equipped computers
■ Full plug-and-play support with USB keyboards and mouses.
■ Supports a maximum resolution of 1920x1200@60Hz
■ Hotkey and push-button switching
■ OS independent - No driver or software required
■ Supports DDC2B for monitor detection
■ Multiplatform support :Windows, Linux and Mac
■ HP,DELL,IBM mouse and keyboard compatable
Package Includes
• 1 x DVI KVM Switcher
• 1 x Power Adapter
• 1 x User’s Manual
Specifications
| Specifications | SW1801D |
| Computer Connections | 8 |
| Host Connectors | 8x DVI Female；8x USB Type B female； |
| Console Interfaces |
1x DVI Female； 2x USB Type A female； |
| DVI Specification | V1.0 |
| Maximum Digital Resolutions | 1920 x 1200@60Hz |
| LED Indicators | 8 |
| Port Selection | Push Button and Hotkeys |
| Power Supply | DC12V/1A |
| Operating TemperatureRange | -40 ～ +55°C |
| Dimensions(W x H x D) | 438mm X 153mm X 44.5mm |
This product is also named as DVI Switch,or DVI KVM Switch,or DVI USB KVM Switch,and so on.
