Schneider 140DDO88500 12pt DC Output 24-125 VDC 2 Isolated Sets 0.75A Point Unity Pro

Name: Schneider 140DDO88500 12pt DC Output 24-125 VDC 2 Isolated Sets 0.75A Point Unity Pro
Brand: Hontai Machinery and equipment (HK) Co. ltd
SKU: 140DDO88500
Price: 210.00 USD
Availability: InStock

Nome da marca:	Schneider
Número do modelo:	140DDO88500
MOQ:	1
preço:	Negotiations

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin:

France

Packaging Details:

New original box

Destacar:

Schneider 140DDO88500 DC output module

24-125 VDC isolated output module

Unity Pro compatible DC module

Descrição do produto

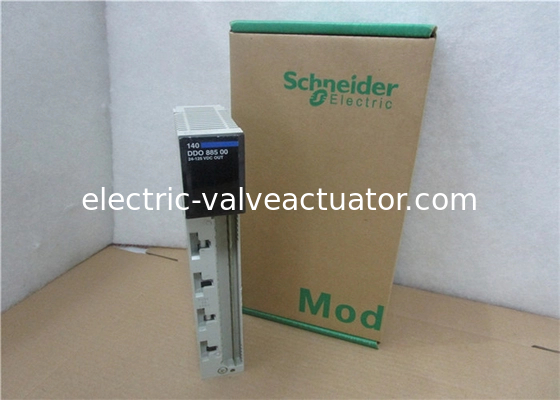

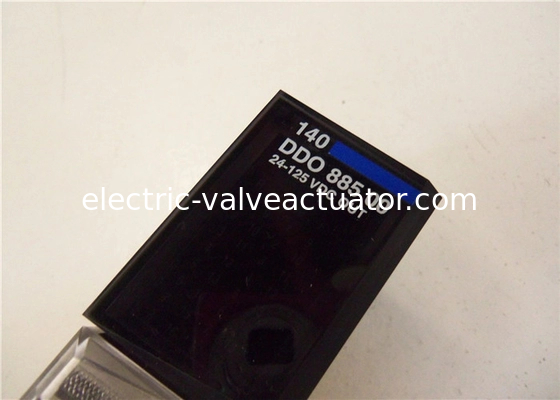

Schneider 140DDO88500 12pt DC Output 24-125 VDC 2 Isolated Sets 0.75A Point Unity Pro

Product Overview

Switching DC output module with 12 points, 24-125 VDC, 2 sets of isolation, 0.75A per point.

Manufacturer: SCHNEIDER ELECTRIC - MODICON
Model: 140DDO88500
Status: CONTROLLER QUANTUM PROCESSOR OBSOLETE 12-01-18
Availability: AVAILABLE
Warranty: New units include one year warranty, used units include six months warranty
Weight: 2.00 lbs

Technical Specifications

Unity Processor Modicon Quantum - 548 Kb - 66 Mhz
Quantum | 140DDO88500 | Modicon | 140 CPU 311 10 | Processor 400K RAM
Integrated connection type: 1 Modbus Plus, 2 Modbus
Internal RAM: 548 kB
Switch function: Slide switch communication port (ASCII/RTU/Memory), Slide switch memory port/off
Execution time per instruction: 0.12...0.585 μs (word), 0.12...0.585 μs (Boolean), 0.1...0.27 μs (fixed-point arithmetic), 0.1...0.27 μs (floating points)

Detailed Specifications

Manufacturer:	Modicon Quantum
Series:	Quantum CPUs
Clock frequency:	66 MHz
Number of slots:	10 \| 16 \| 2 \| 4 \| 6
Number of racks:	2 - local rack(s)
Discrete I/O number:	8000 inputs, 8000 outputs - distributed - per network \| 31744 inputs, 31744 outputs - remote \| Unlimited (27 slots max) - local

Ordering Information

Category:	18150 - QUANTUM CONTROLLERS,HSBY,COMM.
GTIN:	00785901663386
Package weight:	1.7 Lbs
Country of origin:	FR

Sustainability Information

Sustainable offer status:	Green Premium product
RoHS:	Compliant - since 0948 - Schneider Electric declaration of conformity
REACh:	Reference not containing SVHC above the threshold
